The AIMO T08FD Touchscreen Tattoo Stencil Printer is a highly portable, inkless thermal stencil machine built for professional tattoo artists and beginners. It features a 2-inch HD touchscreen and connects via Bluetooth or USB to smartphones, tablets, and PCs.
Core Performance & Printing Specs
- Printing Technology: Direct Thermal Printing (Inkless/Ribbonless)
- Print Resolution: 203 dpi (8 dots/mm) | 1,728 dots/line
- Print Speed: Up to 15 mm/s
- Maximum Print Width: 216 mm
- Printable Length Range: 20 mm to 400 mm (supports custom sizing via app)
- Image Capability: Supports both precise outline/fine-line images and shader/medium-density graphics
Battery & Power
- Battery Type: Built-in Rechargeable Lithium-ion Battery (11.1V)
- Battery Capacity: 1200 mAh
- Battery Endurance: Prints roughly 80 medium-density images or 200 documents (at 12.5% pattern coverage) per full charge
- Input Voltage/Current: 5.0V — 2.0A via Type-C
Media & Paper Compatibility
- Supported Media Types: Standard A4 thermal transfer paper, roll transfer paper, LTR, Legal, and LTR+ formats
- Standard Media Size: 210 mm × 297 mm (A4) or 216 mm wide thermal rolls
- Thermal Print Head (TPH) Life: Rated up to 50 km of printed media
Connectivity & Software

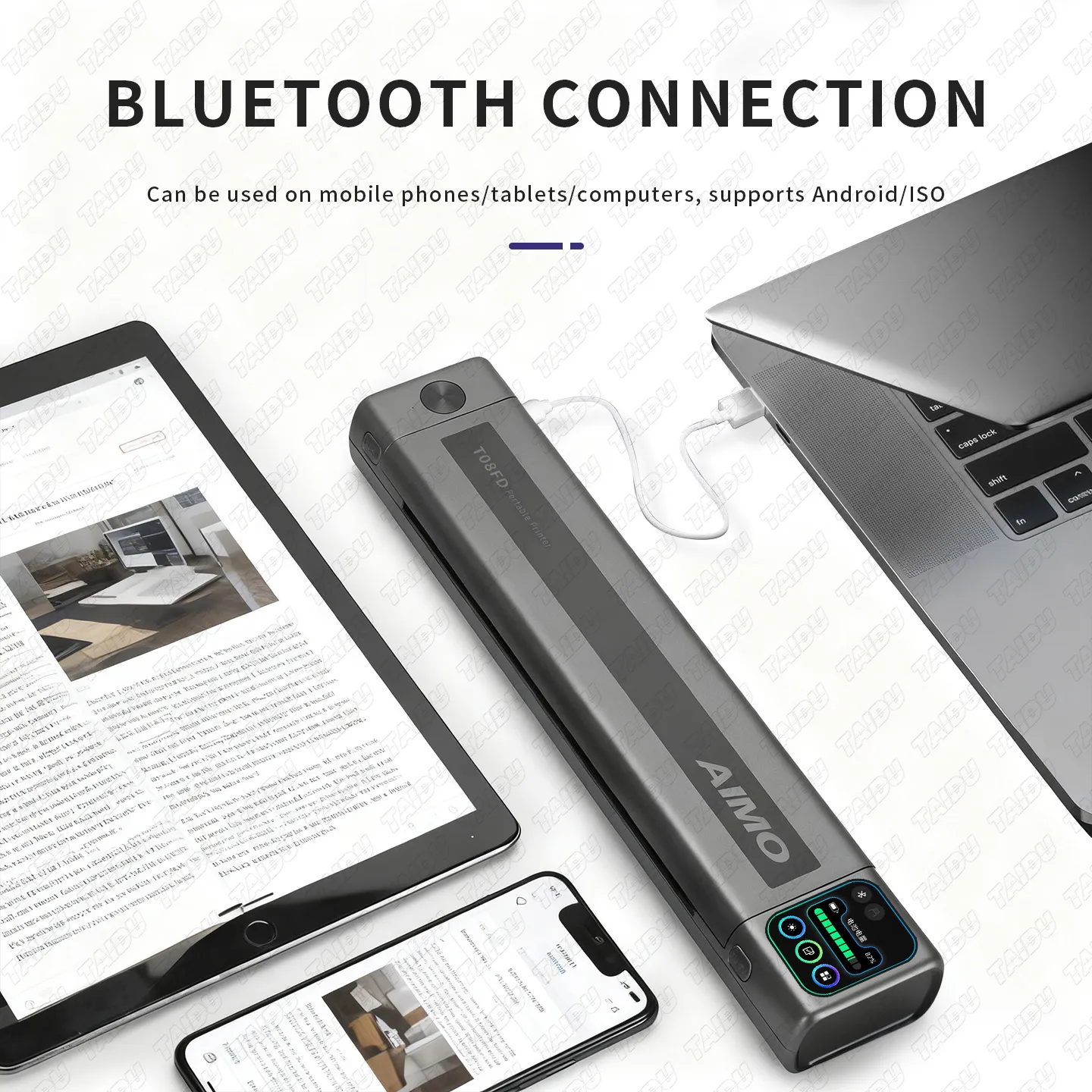

- Wireless Connection: Bluetooth 5.0 (Optimized for iOS and Android mobile/tablet applications)
- Wired Connection: USB Type-C data communication (Required for Windows and macOS PC setups)

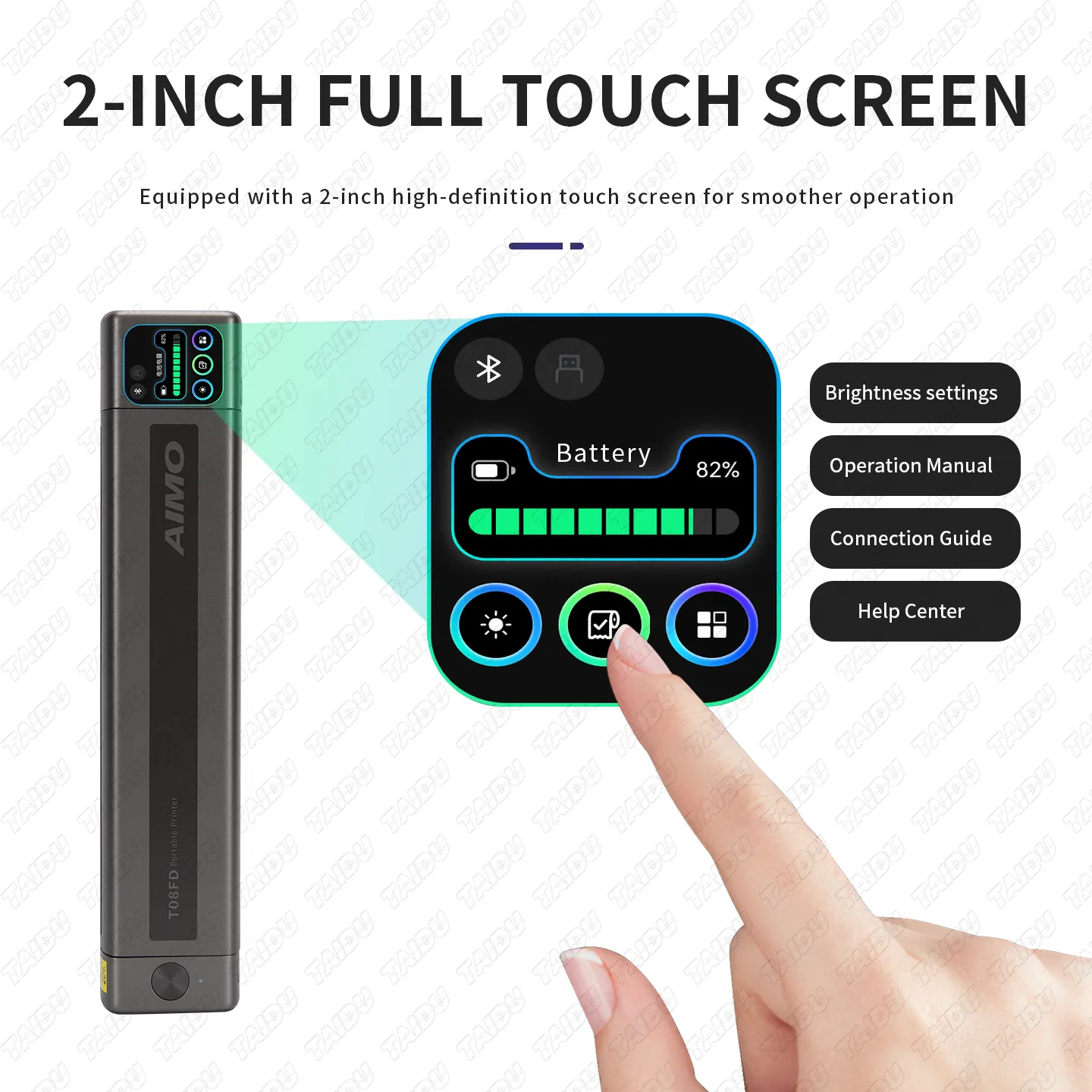

- Hardware Controls: 2-inch Smart HD Touchscreen LCD panel for tracking battery, connection, and paper status
Physical Dimensions
- Machine Dimensions: 262 mm (L) × 57 mm (W) × 29 mm (H)
- Product Weight: 715 grams
